Home > Product Center> Plastic sheet production line

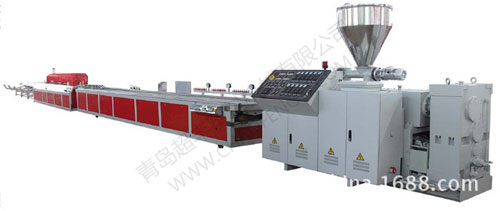

PVC, PE, PP wood plastic profile production line
Equipment features:

Wood-plastic extrusion production line: Wood-plastic products are produced by special-designed screw barrels, molds and extruders. Company's product line: wood-plastic one-step thick plate equipment; wood-plastic one-step profiled equipment; wood-plastic one-step decorative materials equipment; wood-shaped grain equipment; various wood-plastic molds. The extruder can be directly extruded by two-stage mixing. It can also be extruded in two steps after granulation. It saves electricity and saves space. It has high output and stable extrusion pressure. The preheating feeder is placed on the top of the main machine, and most of the wood is extracted first. The residual water in the powder makes the main feeding section more full; the plasticizing and mixing effect is good. The optimized screw design makes the shearing small, and it is not easy to cut the wood fiber, which makes the material stay in the machine evenly. The screw barrel is treated with bimetal, which is wear-resistant and corrosion-resistant and has a long service life. The production line can produce PE, PP or PVC wood-plastic profile products, which are mainly used for pallets, packing boxes, flooring, outdoor decorative materials, etc., and are widely used. The wood powder and plant fiber are added in a high amount (up to 50-75%); the equipment has strong adaptability and can process PP, PE, ABS, PS, etc. at the same time.


Technical parameters

Project

YF180
YF240
YF300
YF600
YF900
YF1200


Maximum sheet width (mm)

180
240
300
600
900
1200
Traction height (mm)
150
150
150
150
150
150
Traction (KN)
2
2
2
30
40
50
Traction speed (m/s)
0-5
0-5
0-5
0-3
0-2.5
0-2.5
Auxiliary machine total power (kw)
35
35
30
30
40
45
Cooling water capacity (m3/h)
6
6
6
9
12
15
Compressed air pressure (Mpa)
0.6
0.6
0.6
0.6
0.6
0.6
